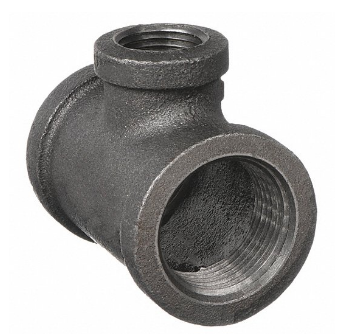

ASME B16.3 Reducing Tee, 1 x 1 x 3/4 Inch, 150 LB, ASTM A47
Key Specifications / Features
Model No.: Hits: 1
ASME B16.3 Reducing Tee Manufacturer: 150 LB Reducing Tee, Malleable Iron, 1x1x3/4 Inch, FNPT, ASME B16.3, ASME B16.4, ASTM A197, ASTM A47, UL, FM Approved.
Request a quoteTags:
Detail Information
Type: Reducing Tee.
Pipe Fitting Material: Malleable Iron.
Fitting Schedule/Class: Class 150 LB.
Pipe Size - Pipe Fitting: 1 inch x 1 inch x 3/4 Inch.
Fitting Connection Type: FNPT.
Standards: ASME B16.3, ASME B16.4, ASTM A197, ASTM A47, FM Approved, UL Listed.
Max. Pressure: 300 psi@150 Degrees F.
Saturated Steam Pressure: 150 psi.
Temp. Range: -20 Degrees to 366 Degrees F.
Pipe Fitting Material: Malleable Iron.
Fitting Schedule/Class: Class 150 LB.
Pipe Size - Pipe Fitting: 1 inch x 1 inch x 3/4 Inch.
Fitting Connection Type: FNPT.
Standards: ASME B16.3, ASME B16.4, ASTM A197, ASTM A47, FM Approved, UL Listed.
Max. Pressure: 300 psi@150 Degrees F.
Saturated Steam Pressure: 150 psi.
Temp. Range: -20 Degrees to 366 Degrees F.
