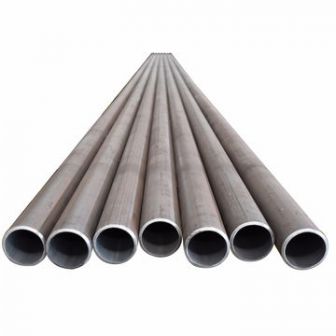

ASME SA213 T5 Seamless Heat Exchanger Tube, OD 6-127mm
Key Specifications / Features
Model No.: Hits: 2
ASME SA213 T5 Seamless Heat Exchanger Tube Manufacturer: Boiler Heat Exchanger Tube, ASME SA213 T5, SS 304, SS 304L, SS 316, SS 316L, OD 6-127mm, WT 0.5-12mm.
Request a quoteTags:
Detail Information
Name: ASME SA213 T5 OD 19.05mm WT 2.11mm Seamless Boiler Tube Heat Exchanger Tube.
Material: SS 304, SS 304L, SS 316, SS 316L, Etc.
OD: 6-127mm.
WT: 0.5-12mm.
Length: 6m Or As Customers' Request.
Application: For Boiler And Heat Exchange.
Delivery Condition: Pickled After Heat Treatment.
Production Method: Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished.
Finishing:
A: sanded.
B: 400#-600# mirror.
C: hairline brushed.
D: TIN titanlum.
E: HL brushed & mirror (two kinds of finishing for one pipe).
Test and Inspection: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test, etc.
QUALITY CONTROL:
Incoming Raw Material Inspection.
Raw Material Segregation to avoid steel grade mix-up
Heating and Hammering End for Cold Drawing.
Cold Drawing and Cold Rolling, on line inspection
Heat Treatment, +A, +SRA, +LC, +N, Q+T.
Straightening-Cutting to specified length-Finished.
Material: SS 304, SS 304L, SS 316, SS 316L, Etc.
OD: 6-127mm.
WT: 0.5-12mm.
Length: 6m Or As Customers' Request.
Application: For Boiler And Heat Exchange.
Delivery Condition: Pickled After Heat Treatment.
Production Method: Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished.
Finishing:
A: sanded.
B: 400#-600# mirror.
C: hairline brushed.
D: TIN titanlum.
E: HL brushed & mirror (two kinds of finishing for one pipe).
Test and Inspection: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test, etc.
QUALITY CONTROL:
Incoming Raw Material Inspection.
Raw Material Segregation to avoid steel grade mix-up
Heating and Hammering End for Cold Drawing.
Cold Drawing and Cold Rolling, on line inspection
Heat Treatment, +A, +SRA, +LC, +N, Q+T.
Straightening-Cutting to specified length-Finished.
| Material | Mechanical Properties | ||
| Tensile Strength ≥ MPa | Yield strength ≥ MPa | Elongation ≥ % | |
| TP304 | 515 | 205 | 35 |
| TP304L | 458 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP317 | 515 | 205 | 35 |
| TP317L | 515 | 205 | 35 |
| TP321 | 515 | 205 | 35 |
