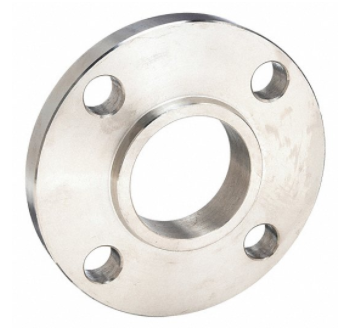

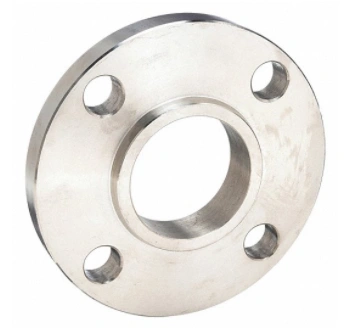

Stainless Steel 304 Slip-On Flange, 2 Inch, Class 150
Key Specifications / Features
Model No.: Hits: 5
Stainless Steel 304 Slip-On Flange Supplier: Welded Slip-On Flange, SS 304, 2 Inch, Class 150 LB, ANSI B16.5, ASTM A182, 4 Holes.
Request a quoteTags:
Detail Information
Item: Stainless Steel 304 Slip-On Flange
Pipe Fitting Material: Stainless Steel 304.
Fitting Schedule/Class: Class 150.
Pipe Size-Pipe Fitting: 2 Inch.
Fitting Connection Type: Welded.
Max. Pressure: 150 psi.
Outside Dia.: 6 Inch.
Number of Holes: 4.
Temp. Range: -60 Degrees to 450 Degrees F.
Standards: ANSI B16.5, ASTM A182.
Pipe Fitting Material: Stainless Steel 304.
Fitting Schedule/Class: Class 150.
Pipe Size-Pipe Fitting: 2 Inch.
Fitting Connection Type: Welded.
Max. Pressure: 150 psi.
Outside Dia.: 6 Inch.
Number of Holes: 4.
Temp. Range: -60 Degrees to 450 Degrees F.
Standards: ANSI B16.5, ASTM A182.
